EQUIPMENT FLEET





We have reliable subcontractors for the areas of laser cutting, water-jet cutting, deep drilling, and thread grinding.

We also repair and overhaul machines.







Saws
Number Machine type Details (dimensions in mm)
2 power hacksaws up to 260 dm
2 circular saws up to 100 dm

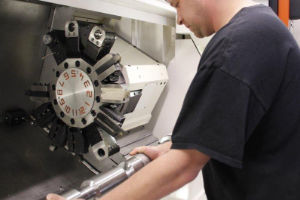

CNC Turning
Number Machine type Details (dimensions in mm)
4 CNC lathes up to 320 diameter
up to 1,500 in length
1 CNC lathes up to 500 diameter
up to 1,500 in length



Turning, conventionally
Machine type Details (dimensions in mm)
Various machines up to 800 diameter
up to 1,500 in length



CNC Milling
Number Machine type Details (dimensions in mm)
2 CNC milling cutter with rotary attachment x = 500, y = 500, z = 400
3 milling cutters, four-axis x = 500, y = 500, z = 400



Milling, conventionally
Number Machine type Details (dimensions in mm)
2 Milling machines x = 500, y = 400, z = 400



Deep hole drilling
Number Machine type Details (dimensions in mm)
1 Deep hole drilling machine 4.0 up to 36.0 diameter
up to 1,000 in length – center



Boring and drilling, conventionally
Machine type Details (dimensions in mm)
Various machines 0.5 up to 50.0 diameter
Table max.: x = 400, y = 400, z = 800



Honing
Number Machine type Details (dimensions in mm)
1 honing machine drill-hole up to 98 diameter
up to 300 in length



Surface grinding
Number Machine type Details (dimensions in mm)
4 universal grinding machines from x = 200, y = 500, z = 260
up to x = 800, y = 500, z = 350
1 Diaform grindern von x = 200, y = 500, z = 260



External cylindrical grinding
Number Machine type Details (dimensions in mm)
7 universal grinding machines up to 450 clamping diameter
up to 1,500 in length



Internal cylindrical grinding
Number Machine type Details (dimensions in mm)
1 universal grinding machines drill-hole from 0.8 up to 4.0 diameter
up to 60 length
Spindle revolutions 120,000 rpm
3 universal grinding machines drill-hole from 2.5 up to 350 diameter
up to 500 Länge
Workpiece length: 1.000



Electric discharge machining
Number Machine type Details (dimensions in mm)
1 wire eroder x = 350, Y = 250, z = 300
1 penetration eroder x = 400, Y = 250, z = 400



Broaching
Number Details (dimensions in mm)
1 up to a working width of 14 mm
broaching length of max. 120 mm



Hardening
from our partners:
Eiferle
Hot
Bodycoat
Fritz Düsseldorf
etc.



Surface treatment
from our partners following coatings are carried out:
TIN-Beschichten
Brünieren
TICN
versilbern
vergolden
Keramikbeschichtungen
etc.



Labelling
Engraving
Etching
Laser labelling



Materials to be cut
Constructional steels, tempering steels, case hardening steels, tool steels, high-speed tool steels (HSS), stainless, acid-proof, and heat-resistant steels for the beverage and food industries
Nonferrous metals (aluminum, copper, bronze, red brass, Ampcoloy, nickel silver, and tombac)
Cast iron (grey iron, ductile iron, castings for hydraulic systems, etc.)
Plastics (Delrin, nylon, PVC, cotton fabric laminate, etc.)
Power metals (hard metal, Widia, Ferro, -Tix, molybdenum, etc.)
Powder-metallurgic steels (ASP, Vanadis, Elmax, etc.)
